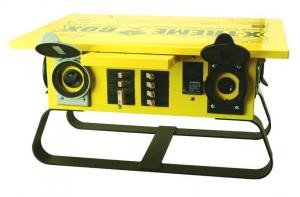

Yellow X-Treme Box Power Distribution Center
(Straight Blade)

by Coleman Cable
Stock Item # List Price Special Price QTY Total
In stock COL01970 $ 592.95 $ 399.90
$ 399.90
Add to Cart »

Shipping Cost

Delivery Method

Product Description

NOTE: PURCHASE SIX OF THIS ITEM, SHIPPING WILL BE FREE. YOU MUST CALL US @ 1-800-429-3289 FOR THIS TO BE APPLIED

Enclosure type: NEMA Type 3R, rainproof

Enclosure material: Carbon steel, protected by e-coat and yellow exterior paint finish

Enclosure base: Carbon steel, with black powder coat finish

Receptacle covers: Thermoplastic, on all receptacles

Receptacle cover colors: Black, except for the 30A receptacle cover, which is gray

Power inlet: 50A 125/250V California style twist lock flanged inlet with integral cover

Power outlets:
(1) 50A 125/250V California style twist lock receptacle
(1) NEMA L6-30R 30A 250V twist lock receptacle
(6) NEMA 5-20R 20A 125V straight blade receptacles (01970)

Over-current protection: 50A receptacle - none
30A receptacle - 30A circuit breaker for each ungrounded conductor
20A receptacles - 20A circuit breaker for each receptacle

Ground fault protection: Individual Class A GFCI for each 20A receptacle

Over-voltage protection: Provided by GFCI on each 20A receptacle

NRTL APPROVAL: ETL Listed to UL 1640 and CAN/CSA C22.2 No. 14

Warranty Information

Coleman Cable 8003239355

Reviews

(5/5)

"use this along with the 50 & 100' 50a cords. also use the y adapter for other boxes we have bought in the past. no problems use it all the time"

(5/5)

"Build quality is outstanding for a unit at this price - less than half of what some competing products go for. We will most likely order more."

(5/5)

"We needed a power distribution set-up for a church function ... an all day multi-band Christian music entertainment event. We needed several 20 amp, 120 volt, GFI circuits to accomodate the equipment. As a retired electrician, this falls on my shoulders and I knew about the Coleman Yellow X-Treme Box, Model 01970. I shopped around and found your prices to be much better than anywhere else. The Power Distribution Center worked perfectly and everyone was happy with the set-up. We now have this product in our inventory of equipment for future use for many years to come. Thank you!"

(5/5)

"It does everything I expected it to do. Thankyou"

(5/5)

"The ordering was fast and the portable power distribution center works great."

(5/5)

"Worked like a champ!"

(5/5)

"Great product great prices $250 less than the first one i bought from another store. this is the second one i have purchaced with the 50 ft. cord. Would buy from again. 5 star rating !!!!!!!!!"

(5/5)

"I was going to build my own distribution box. Then I discovered the Coleman X-Treme Box, which had everything I needed and then some. It saved me a lot of build time, and it works great in the field!"

(5/5)

"Fast delivery from AZ Tools! Perfect solution for a photo studio needing lots of power."

(5/5)

"Extremely well built. Everything that we expected and it compares favorably to the $1,200 Hubbell. Highly recommend."
