Specifications:
Maximum Voltage Between Any Terminal and Earth Ground: 1000V
Surge Protection: 8kV Peak/IEC 61010
Fuse For mA Inputs: 440mA, 1000V FAST Fuse
Fuse For A Inputs: 11A, 1000V FAST Fuse
Display:
Digital: 6000 Counts, Updates 4/sec
Bar Graph: 33 Segments; Updates 32/sec
Frequency: 10000 Counts
Capacitance: 1000 Counts
Altitude:
Operating: 2000m
Storage: 12000m
Temperature:
Operating: -10°C - 50°C
Storage: -40°C - 60°C
Temperature Coefficient: 0.1X (Specified Accuracy/°C (<18°C or >28°C))
Electromagnetic Compatibility (EN 61326-1:1997): In an RF field of 3 V/M, accuracy is equal to specified accuracy except in temperature (Specified Accuracy ± 5 °C (9 °F)).
Relative Humidity (Maximum Non-Condensing):
90% - 35°C
75% - 40°C
45% - 50°C
Battery Life: 400hrs (Typical Alkaline)
Height: 4.3cm
Width: 9cm
Length: 18.5cm
Weight: 420g

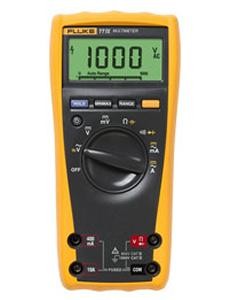

The new Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems.
This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
It measures wide 1000 V measurement range, average responding AC measurements,10 amps continuous (20A for 30 seconds), frequency, capacitance, resistance, and continuity with 0.3% accuracy.
Features:
Voltage DC:
Range: 6000V - 1000V
Best Accuracy: +/- (0.3% + 1)
Best Resolution: 0.1mV
Voltage AC:
Range: 600.0 mV-1000V
Best Accuracy: +/- (2.0% + 2)
Best Resolution: 1.0mV
Amps AC:
Range: 60.00 mA – 10A
Best Accuracy: +/- (1.5% + 2)
Best Resolution: 0.01mA
Amps DC:
Range: 60.00 mA – 10A
Best Accuracy: +/- (2.5% + 2)
Best Resolution: 0.01mA
Resistance:
Range: 600.0? - 50M?
Best Accuracy: +/- (0.5% + 1)
Best Resolution: 0.1?
Capacitance:
Range: 1nF- 9999µF
Best Accuracy: +/- (1.2% + 2)
Best Resolution: 1nF
Frequency:
Range: 99.99hz - 99.99khz
Best Accuracy: +/- (0.1% + 1)
Best Resolution: 0.01hz
Safety:
ANSI/ISA S82.02.01
CSA C22.2-1010.1
IEC 61010 to 1000 V Measurement Category III and 600 V Measurement Category IV
Certifications:
CSA
TÜV (EN61010)
UL
? (N10140)
VDE
