NOTE: SPECIAL ORDER - Direct ship from Ingersoll Rand
Beam width - in(mm): 2.95" - 10.24" (75 - 260)
Headroom - in(mm): 4.01" - 5.91" (105 - 150)
Quick installation by hand.
Low headroom design adjust to fit a wide range of flat or tapered beams.
Meets ASME B30.16 for use with powered or manual hoists.
Each unit is serialized, supplied with a test certificate and manual.
Metric rated for vertical lifting at 2200lbs/ton.

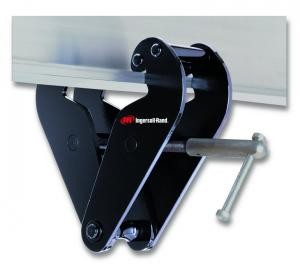

Beam Clamps provide a temporary or permanent mount to a wide range of tapered or flat beams.
These units have been designed and verified, by actual pull testing, to achieve minimum design factor of 5:1 for vertical lifting with powered or manual hoist meeting ASME B 30.16.
Quick and simple installaion is achieved by hand without tools.
Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom.
The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.
