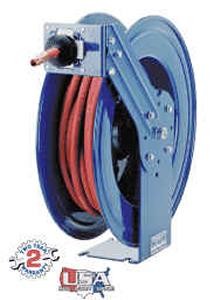

1/2" Spring Driven Low Pressure SH-Series Hose Reel w/50' Hose

The standard hose is for air or water service onlyMaximum temperature 150 degrees Fahrenheit.Hose I.D.: 1/2"
Hose O.D.: 27/32"
Hose length: 50'
Hose PSI: 300 Coxreels' SH, MP & HP Series reels have a larger chassis and a double supported axle for extra strength and stabilityThe larger frame holds longer lengths of hose and is suitable for general air, water, oil, grease, gas and other heavy fluidsThe 1/4" bent steel base & support post has no structural welding adding rigidity, reducing vibration.
Solid brass NPT swivel with stainless steel stud for non-corrosive strength & performance. (Zinc Plated steel swivels on HP models) High-quality steel construction & durable epoxy powder-coat finish. Lubricated factory-balanced spring motor, constructed on in-house proprietary custom machinery, ensures the highest quality & long lasting reliability. Cartridge-style spring motor easily accessed, serviced and/ or replaced if necessary. Double supported 1" solid steel axle with 1" self-lubricated precision bearings. Swivel O-ring seals supported by Teflon backup rings that warrant consistency & durability. Heavy ribbed steel discs with rolled edges for maximum strength & safety. Non-corrosive 1/4" zinc-plated steel lock ring with stainless steel lock dog & spring. Multi-position locking ratchet easily secures hose at desired length. Guide arm adjusts for various mounting positions including wall, floor, ceiling, & vehicle. Detachable roller-guide with smooth rollers eliminates pinching & reduces hose wear. Protective spring guard on inlet protects hose from rubbing & wearing. Adjustable solid rubber hose stop for convenient lead length positioning.
