Mityvac Digital Diesel Compression Test Kit

by Mityvac
Stock Item # List Price Our Price QTY Total
In stock MITMV5535 $ 323.95 $ 239.36
$ 239.36
Add to Cart »

Shipping Cost

Delivery Method

Product Description

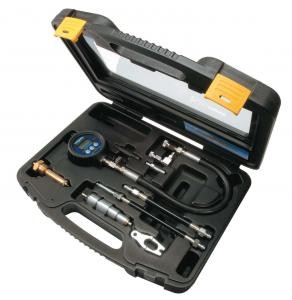

Mityvac MV5535 Digital Diesel Compression Test KitThis comprehensive diesel engine compression test kit features an electronic tester that memorizes the peak compression value for each cylinder. When testing is complete, the values can be quickly reviewed at the push of a button. The kit also includes two (2) injector adapters and four (4) glow plug adapters for testing most modern diesel cars and light trucks sold in the United States.Features:
Stores maximum compression value for up to 12 cylinders
Backlit LC display is easy to read from any angle and in any light
Uses standard 9V battery for convenience and cost
Automatically shuts off after 3 minutes of non-use (memory is retained)
Rubber boot protects the gauge from bumps and drops
Sealed, grease- and oil-resistant gauge face prevents contamination of electronics
Displays values in PSI, Bar and kPaIncludes:
Digital compression tester comprising of test gauge with rubber boot, 15" (380 mm) long, high-pressure hose, quick-change coupler
Injector Adapter (Dodge 24V 5.9L Cummins (1999-2003), 5.9L Cummins ISB and ISBE)
Injector Adapter (Case/Cummins Series "B" 2.9L, 3.9L, 5.9L through 1998)
Glow Plug Adapter (GM 4.3L, 5.7L (1978-1985), Navistar 6.9L, 7.3L through 1994)
Glow Plug Adapter (GM 6.2L, 6.5L V8)
Glow Plug Adapter (Ford/Navistar 7.3L Power Stroke (1994-2003))
Glow Plug Adapter (Volkswagen 1.9L TDI)
Right-angle Adapter
Field service kit
Custom-molded case
User manual (English/French/Spanish/German)Specifications:
Maximum Pressure: 1,000 psi (6890 kPa) (68.9 bar)
Packaged Weight: 5.2 lbs (2.36 kg)
Case Size: 15.7" wide x 12.4" tall x 3.2" deep (400 mm wide x 315 mm tall x 82 mm deep)
