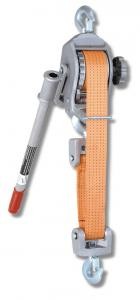

IR C-Series Ratchet Strap Puller

by Ingersoll Rand
Stock Item # List Price Our Price QTY Total
In stock IRC400S $ 608.95 $ 451.06
$ 451.06
Add to Cart »

Shipping Cost

Delivery Method

Product Description

NOTE: SPECIAL ORDER - Direct ship from Ingersoll Rand

Number of Lines: Single
Rated Capacity lb: 2,000
Min Distance Between Hooks: 17"
Lifting Distance: 12'
Strap Diameter: 3/32" x 1-7/8"
Number of Hooks: 2

Number of Lines: Double
Rated Capacity lb: 4,000
Min Distance Between Hooks: 22"
Lifting Distance: 6'
Strap Diameter: 3/32" x 1-7/8"
Number of Hooks: 3

Strap Puller:
An extension of our premium C Series, the C Series strap pullers offer the following unique features:
Three hooks allow 2 ton capacity; 6 foot pull with double line and 1 ton capacity with 12 foot pull using single line
Non-conductive, corrosion resistant, high strength synthetic strap will not kink or bind
Easy pay out of strap for fast set-up

The C-Series includes rugged cast aluminum wire rope pullers designed to store more wire rope than all-steel ratchet pullers

Rigged double line, they handle those long reach pulling or lifting jobs up to 3,400 lbs. with no problem

"One notch at a time" lowering is assured by the ratchet and pawl system

The gear teeth are IR's "Buttress Tooth" design for additional strength and longer gear life

Extremely strong, with a solid cast steel drive and holding dog

Heavy-duty cast aluminum drum and lighweight aluminum frame, alloy steel load hook with safety latches

Safe lowering is assured by the ratchet and pawl system

4:1 design factor lifting, lowering and pulling. Meets ASME B30.21

Overload safety handle designed to noticeably bend

Lightweight aluminum frame

Alloy steel load hook with safety latches

One piece cast aluminum drum

Buttress tooth design improves load gear life

Solid steel drive and holding dog, not laminated plates

Galvanized aircraft quality wire rope

Ratchet and pawl system provides safe, one notch at a time lowering

Cable guide and shield protects wire rope and spools cable evenly on drum

Reversible handle changes position easily, so pull is always possible in the right direction against the load

Easy to repair, replacement parts available

Plated external parts for corrosion resistance

Warranty Information

For more than sixty years, Ingersoll-Rand has pioneered the development and advancement of Impactools, and today leads the industry with the most complete product selection available. the hardest-working tools of all. Nothing cuts as much time, or packs more labor-saving power than the Impactool.

Ingersoll Rand 8004834981

Service Center
Ingersoll-Rand tools are built with the finest materials and care to deliver more power, speed, and durability. The Ingersoll-Rand warranty, your assurance of top quality, accompanies all equipment. All Ingersoll-Rand automotive service tools are backed by a one year limited warranty against defects in materials and workmanship. Be sure to indicate the date code/serial number (located on nameplates) when completing your warranty registration card, provided with each tool. Tools that have been abused, over applied or are worn out, aren.t covered under warranty.
