Greenlee Ultra Cable Feeder w/ Hand Switch

by Greenlee
Stock Item # List Price Our Price QTY Total
In stock GRN6810 $ 15,366.95 $ 11,382.24
$ 11,382.24
Add to Cart »

Shipping Cost

Delivery Method

Product Description

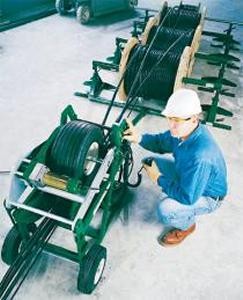

Greenlee 6810 Ultra Cable Feeder with Hand SwitchFeeds cable at variable speeds to match the speed of cable puller. Accommodates cable ranging in size up to 3.5" (88.9 mm) in diameter. Sets up easily and can be operated by just one person. Dual motors drive each wheel for traction on both sides of the cable. Comes with pendant and toggle switch. An optional foot switch is available to control feeding. Two cable loading methods: top-loading and end-loading.Specifications
Power Supply 115 VAC, 15 amps, 60 Hz
Speed 4-36 feet per minute (1.2-11 meters per minute)
Maximum Tractive Force Single Cable: 200 lbs. (.9 kN)
All Cables: 800 lbs. (3.5 kN).
Cable Capacity (Quantity x Size) 8 x 250 MCM (120 mm2); 6 x 500 MCM (240 mm2); 5 x 750 MCM (300 mm2).
Reel Weight Capacity 25,000 lbs. total (11,300 kg)
Size 41" long x 27.5" wide x 37.5" high (1040 mm x 699 mm x 953 mm) Weight 285 lbs. (130 kg)
Tire Pressure 22 psi (1.5 bar)
