IR P-Series Ratchet Cable Puller
(Capacity 1/2-Ton)

by Ingersoll Rand
Stock Item # List Price Our Price QTY Total
In stock IRP15H $ 281.95 $ 208.47
$ 208.47
Add to Cart »

Shipping Cost

Delivery Method

Product Description

NOTE: SPECIAL ORDER - Direct ship from Ingersoll Rand

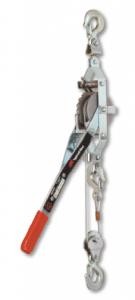

NOTE: Picture shown is Model P15D3HA - Double Line Model with Pulley on End

Theyll pull 1,000 lbs. all day, no problem and no hard work for you, either. Extremely strong and well-made, the Ingersoll-Rand P-Series are high quality, dependable wire rope pullers for low- and mediumduty pulling and lifting jobs.

Made for superior strength, with a steel frame and handle alloy steel load hook, one-piece cast aluminum drum, and solid steel drive and holding dog.

4:1 design factor for lifting.

Long-lasting gears through I.R.s extra heavy "Buttress Tooth" design.

Rated capacity: 1,000 lbs
Number Lines: Single
Minimum distance between hooks: 19-1/2"
Lifting distance: 15'
Cable diameter: 3/16"
Number of hooks: 2

Meets ASME B30.21
Handle and frame are heavy gauge steel with rivet construction and slip-resistant grip.
All steel parts are plated for years of useful life.
Exclusive long life "buttress tooth" cast gear design has no laminated plates to separate or wear and provides maximum strength.
Sturdy steel drive and holding pawls have long life, stainless steel springs.
All pivot points are hardened steel.
Safety latch hooks are drop forged steel, heat treated and plated for corrosion resistance.
Top hook rotates 360 degrees for easy operation.
Galvanized aircraft quality wire rope is preformed to prevent kinks.
One year warranty.

Warranty Information

For more than sixty years, Ingersoll-Rand has pioneered the development and advancement of Impactools, and today leads the industry with the most complete product selection available. They.re the hardest-working tools of all. Nothing cuts as much time, or packs more labor-saving power than the Impactool.

Ingersoll Rand 8004834981

Service Center
Ingersoll-Rand tools are built with the finest materials and care to deliver more power, speed, and durability. The Ingersoll-Rand warranty, your assurance of top quality, accompanies all equipment. All Ingersoll-Rand automotive service tools are backed by a one year limited warranty against defects in materials and workmanship. Be sure to indicate the date code/serial number (located on nameplates) when completing your warranty registration card, provided with each tool. Tools that have been abused, over applied or are worn out, aren.t covered under warranty.
