Number of Lines: Single
Rated Capacity lb: 1,700
Min Distance Between Hooks: 17"
Lifting Distance: 20'
Cable Diameter: 1/4"
Number of Hooks: 3
Number of Lines: Double
Rated Capacity lb: 3,400
Min Distance Between Hooks: 22"
Lifting Distance: 10'
Cable Diameter: 1/4"
Number of Hooks: 3

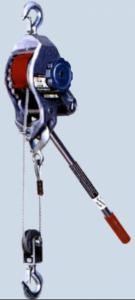

The C-Series includes rugged cast aluminum wire rope pullers designed to store more wire rope than all-steel ratchet pullers
Rigged double line, they handle those long reach pulling or lifting jobs up to 3,400 lbs. with no problem
"One notch at a time" lowering is assured by the ratchet and pawl system
The gear teeth are IR's "Buttress Tooth" design for additional strength and longer gear life
Extremely strong, with a solid cast steel drive and holding dog
Heavy-duty cast aluminum drum and lighweight aluminum frame, alloy steel load hook with safety latches
Safe lowering is assured by the ratchet and pawl system
4:1 design factor lifting, lowering and pulling. Meets ASME B30.21
Overload safety handle designed to noticeably bend
Lightweight aluminum frame
Alloy steel load hook with safety latches
One piece cast aluminum drum
Buttress tooth design improves load gear life
Solid steel drive and holding dog, not laminated plates
Galvanized aircraft quality wire rope
Ratchet and pawl system provides safe, one notch at a time lowering
Cable guide and shield protects wire rope and spools cable evenly on drum
Reversible handle changes position easily, so pull is always possible in the right direction against the load
Easy to repair, replacement parts available
Plated external parts for corrosion resistance
